DU47620
TrueUSB4 MST Dock
Unleash the true power of USB4 with the TrueUSB4 MST Dock DU47620.
Engineered for professionals who demand ultimate speed, versatility, and visual performance, this cutting-edge dock brings together USB4’s 40Gbps bandwidth with advanced MST technology. The result is a single, sleek solution that transforms laptop into a powerhouse of connectivity. Driving up to four 8K displays, delivering lightning-fast data transfer, and keeping fully powered with 96W PD 3.1 charging. Designed for creators, gamers, and innovators alike, the TrueUSB4 MST Dock DU47620 ensures desk stays future-ready with seamless expansion, elegant design, and uncompromising performance.
Feature
Power up to four 8K60 displays, delivering breathtaking clarity and expansive screen real estate for creators, traders, and professionals.
True USB4 unlocks 40Gbps bandwidth for lightning-fast transfers and smooth performance with even the most demanding devices.
With 96W PD 3.1 charging and smart power distribution, your laptop and peripherals stay fully energized for uninterrupted productivity.
Equipped with HDMI 2.1, DP 1.4, USB-A/C, Ethernet, and audio, this dock consolidates every connection you need into one sleek solution.
Advanced MST chipsets ensure stable multi-stream support and future-ready compatibility with USB4 and Thunderbolt 4 systems.

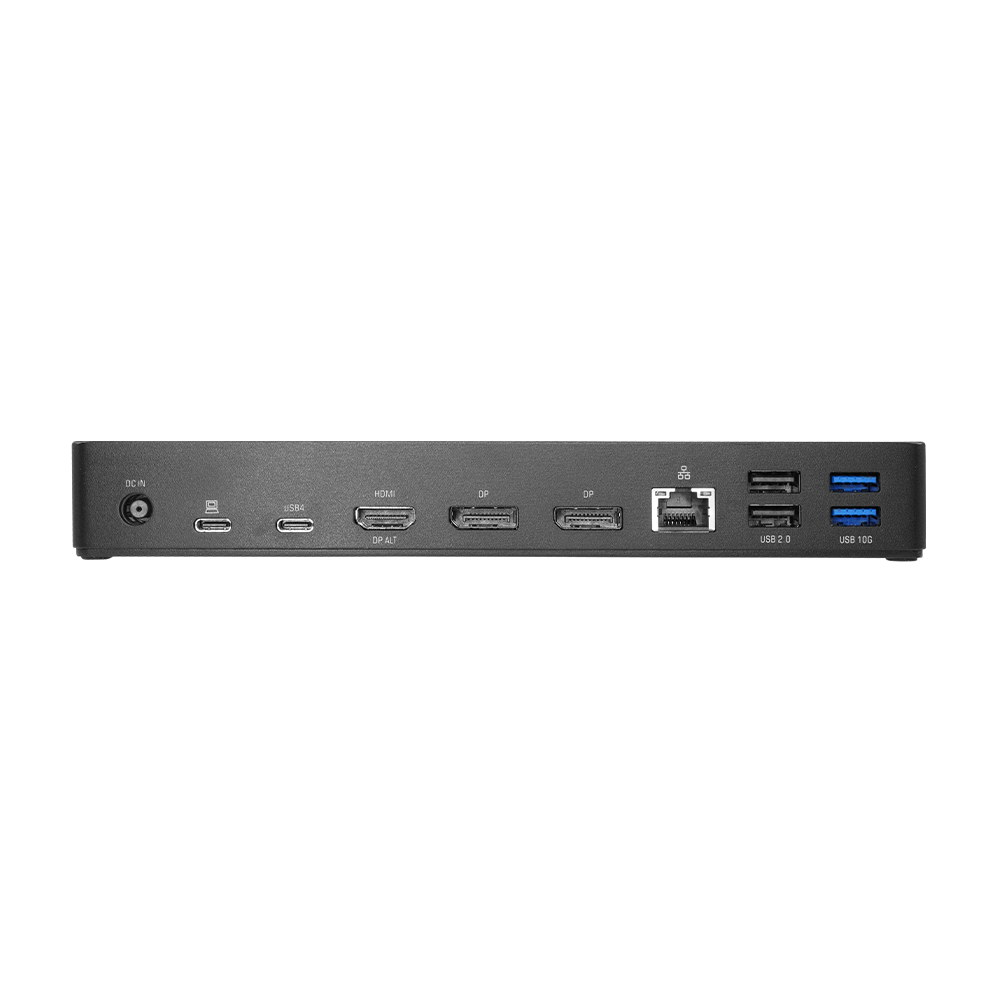

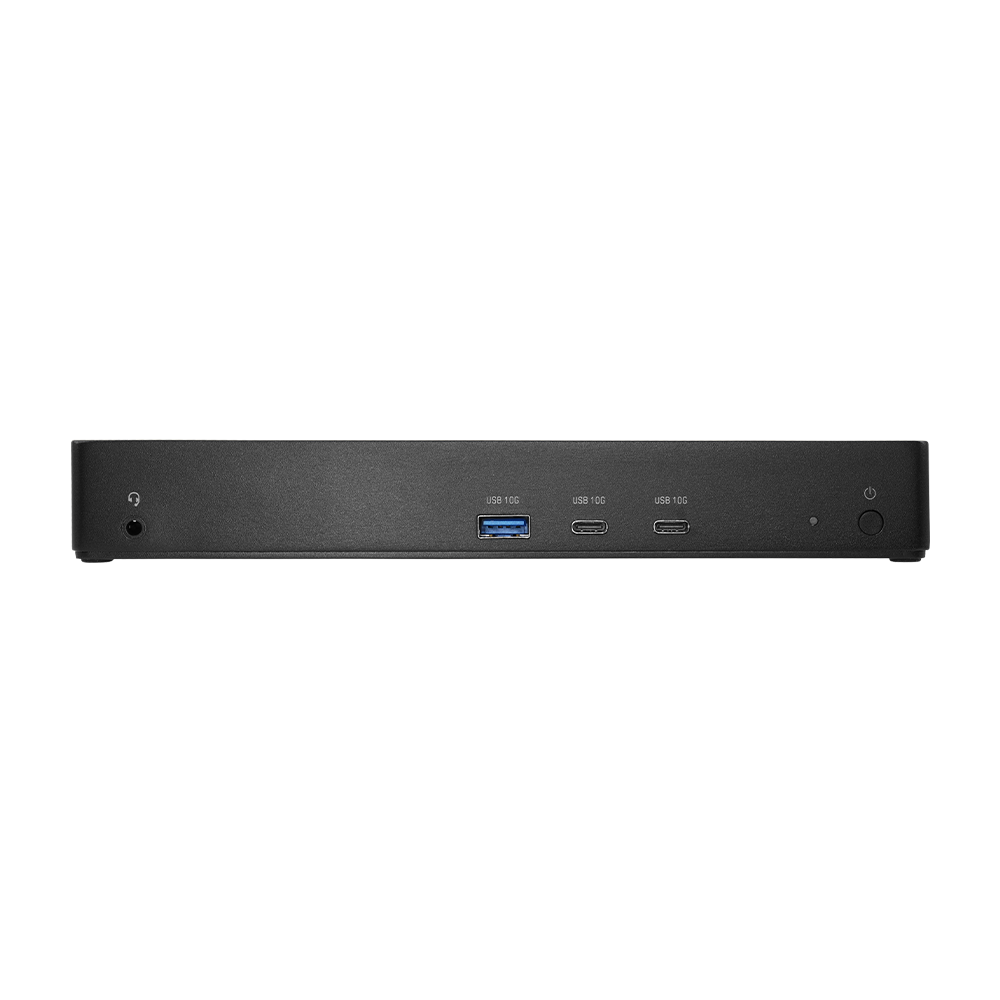

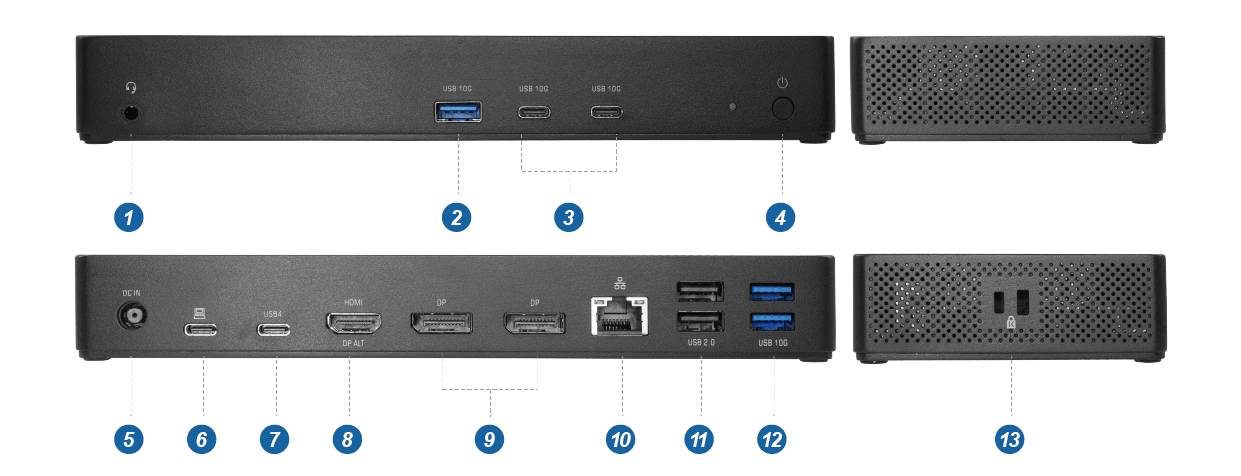

I/O Port Details
3.5mm TRRS Audio Jack
USB-A 10Gbps
USB-C 10Gbps
Power Button
DC Jack
USB-C Upstream
USB-C, USB4
HDMI Port
DisplayPort
RJ45
USB-A 5G
USB-A 2.0
Specifications
Model：
DU47620
Description：
USB4 DP1.4 MST Dock
Max. Display：
4x Displays
Max. Resolution：
1x HDMI2.1 8K60, 1x USB4 8K60, 2x DP1.4 8K60
Downstream：
1x USB4 40G (5V3A, Rear)
2x USB-C 10G (5V1.5A, Front)
1x USB-A 10G (5V1.5A, Front)
2x USB-A 10G (5V0.9A, Rear)
2x USB-A 2.0 480Mbps (5V0.5A, Rear)
Audio：
3.5mm 4-position TRRS Combo
LAN：
1GbE
Cable：
USB4 Type C to C 240W 100cm
PD：
PD3.1 Max.96W for UFP
Power in：
DC135W w/ Smart Power
