HUV6603
USB3 Extender PD dongle and Dual 4K60 Display
Break free from USB distance limits with the HUV6603Z1 Conference USB3 Extender PD dongle.
Powered by advanced HDBaseT technology, this next-generation solution transmits high-speed USB 3.2 Gen 1 at 5Gbps together with dual 4K60 HDMI video over a single CAT6A cable reaching up to 100 meters.
It is designed for conference rooms, classrooms, and control centers, delivering stable connectivity, flawless visuals, and intelligent power delivery in one sleek aluminum form. With unmatched reach, performance, and reliability, the HUV6603Z1 USB3 Extender PD dongle redefines professional collaboration by keeping every device seamlessly connected across any space.
Feature
Extend USB 3.2 Gen1 and dual 4K60 video up to 100 meters over a single CAT6A cable, giving total freedom in how you design and use your conference space.
Deliver dual 4K60 HDMI output that ensures every meeting, training, or presentation looks sharp, professional, and engaging.
Enjoy seamless 5Gbps USB performance with both USB-C and USB-A ports, while maintaining compatibility with USB 2.0 for smooth peripheral and conferencing connections.
Keep devices powered during long sessions with up to 36W PD charging on the receiver side, eliminating clutter from extra adapters.
Built with a sleek aluminum chassis, the extender combines durability and style, offering reliable, professional-grade performance for modern AV environments.

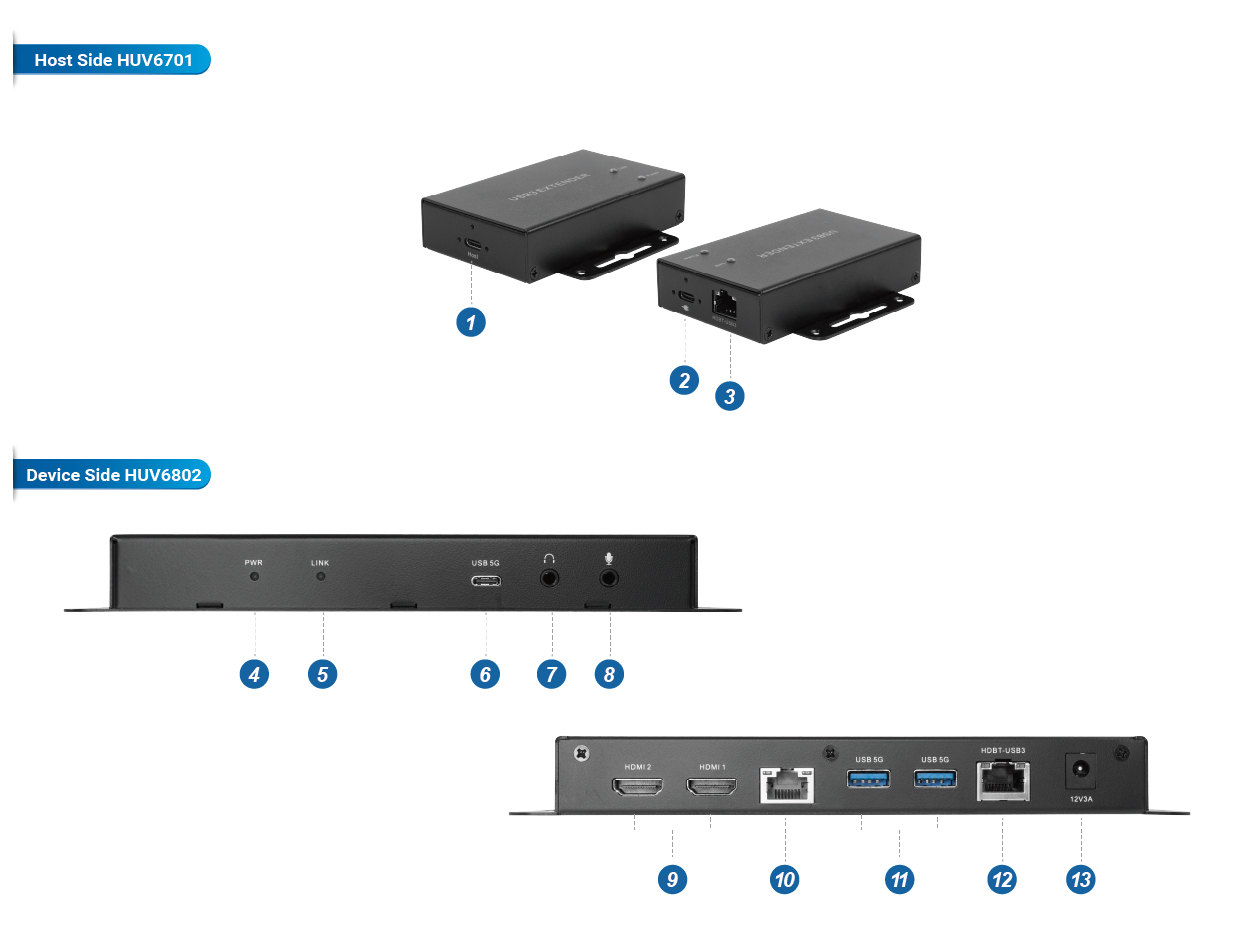

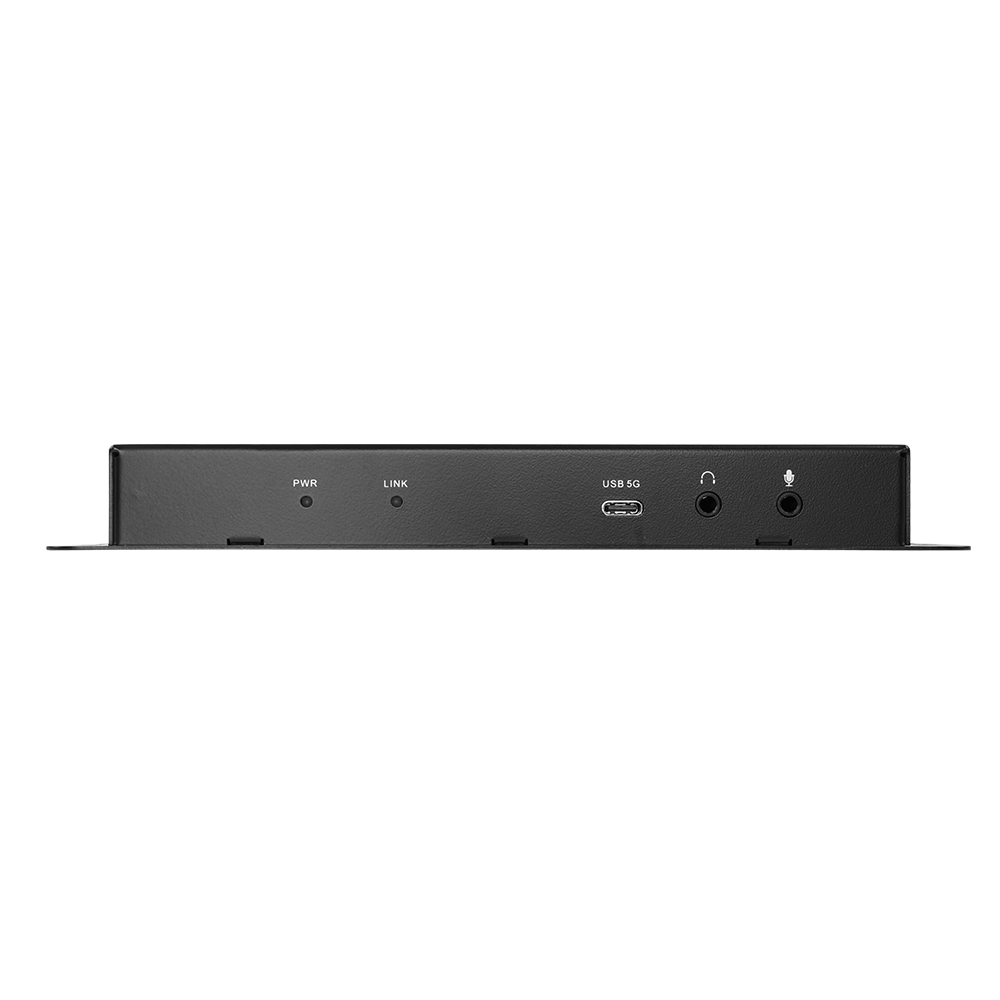

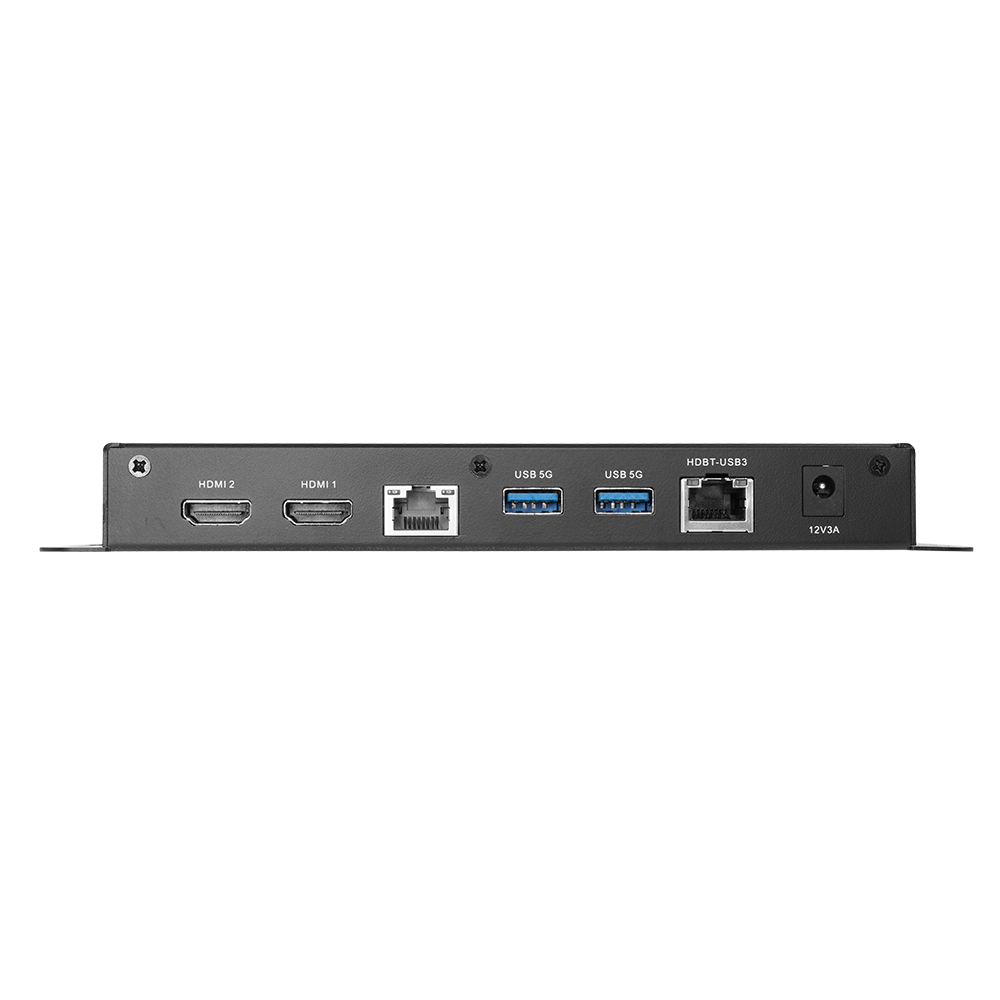

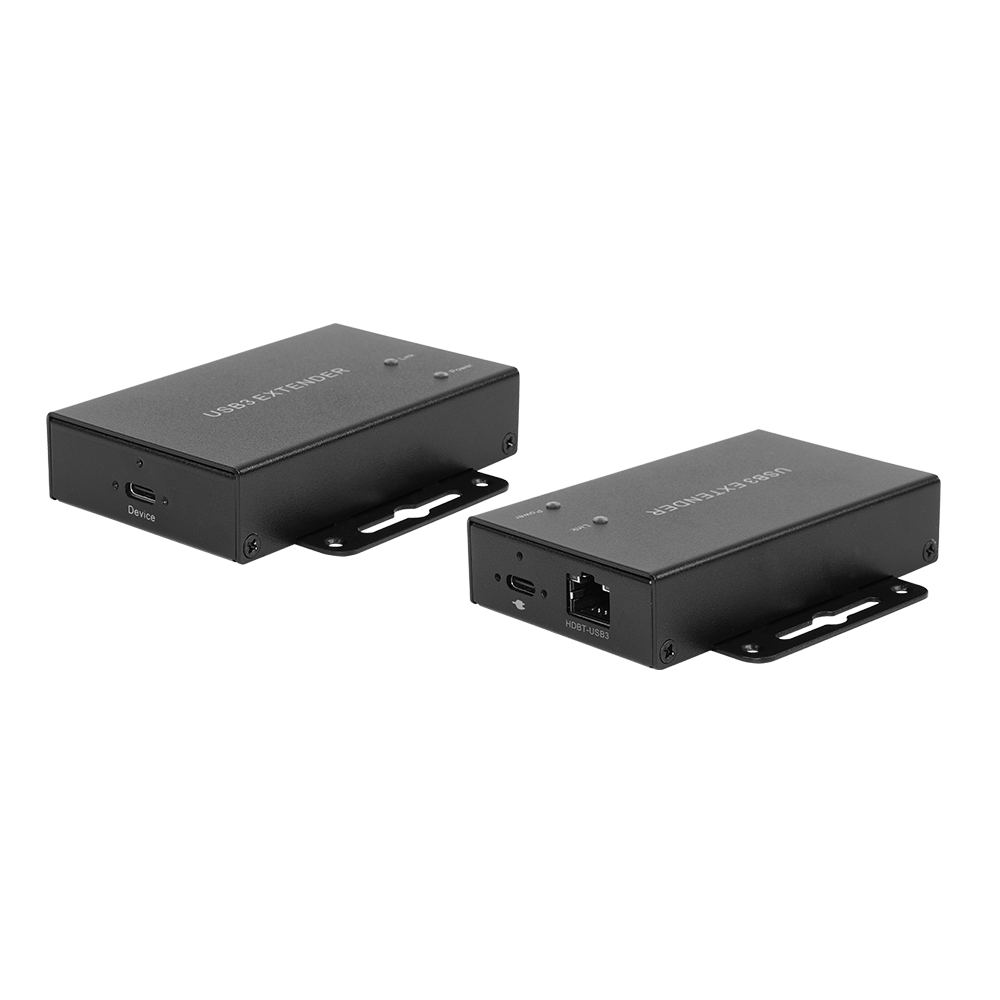

I/O Port Details
USB-C 5G to laptop
USB-C (PD Power input)
HDBT-USB3
LED-Power
LED-Link
USB-C
Audio Out
Audio In
HDMI2.0 x 2
LAN
USB-A
HDBT-USB3
Power In DC Jack
Specifications
Model：
HUV6701 + HUV6802
Description：
USB3 Extender Single-Host Dual-Display Kit
Max. Display：
2x
Max. Resolution：
4K60
Legacy Video Port：
2x HDMI2.0
USB Upstream：
1x USB-C 5Gbps
USB Downstream：
1x USB-C 5Gbps
2x USB-A 5Gbps
LAN：
1Gbps
Audio in/out：
1x /1x
Power mode：
TX: Bus-power/ Self-power
RX: Self-power
PD：
Rx 36W
Self-Power in：
USB-C
Chassis：
Aluminum
