HUV6602
USB3.0 Hub Extender with Dual Host and Dual 4K60 Display
The USB 5G Hub Extender delivers a powerful, long-distance connection solution by combining advanced HDBaseT technology with high-speed USB performance. Designed for seamless data and video transmission, it enables effortless connectivity between your host device and peripherals over a single standard LAN cable — up to 100 meters away.

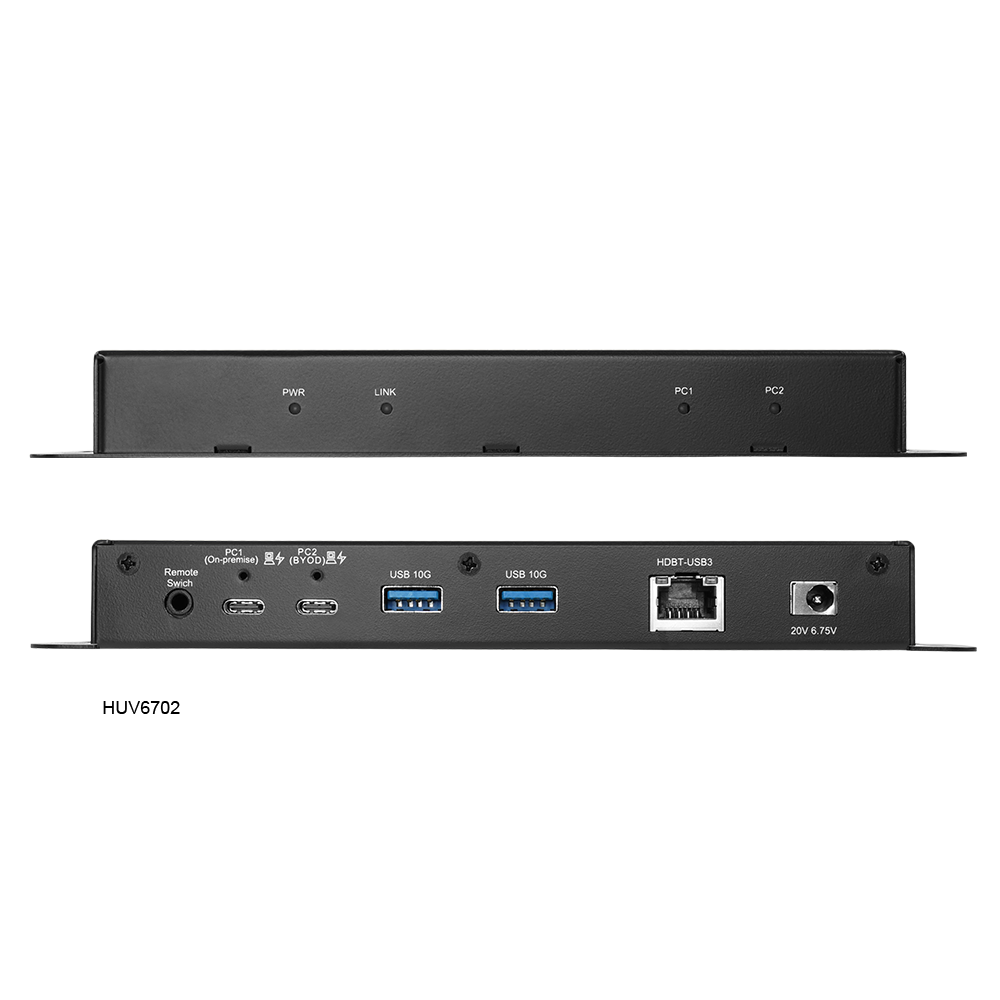

The system includes two components: the HUV6702 (host side) and the HUV6802 (device side). Together, they provide exceptional speed and clarity, supporting USB 3.2 Gen 1 data rates up to 5 Gbps and dual HDMI 4K60 displays for stunning, ultra-high-definition visuals.
With built-in hardware acceleration for smooth, real-time performance and full compatibility with both USB 3.0 and USB 2.0 devices, the USB 5G Hub Extender ensures reliable, uninterrupted operation. Whether used in meeting rooms, control centers, exhibitions, or digital signage, it delivers the perfect balance of performance, simplicity, and long-range flexibility — transforming the way you connect your workspace.
產品特色
Ultra-fast 6 Gbps performance for smooth, lag-free connectivity.
USB 3.2 Gen 1 up to 5 Gbps speeds up file transfers and boosts efficiency.
Dual 4K60 HDMI output delivers sharp, vibrant visuals.
Hardware acceleration ensures seamless real-time performance.
Extend up to 100m with a single CAT6A cable, connecting everything seamlessly.

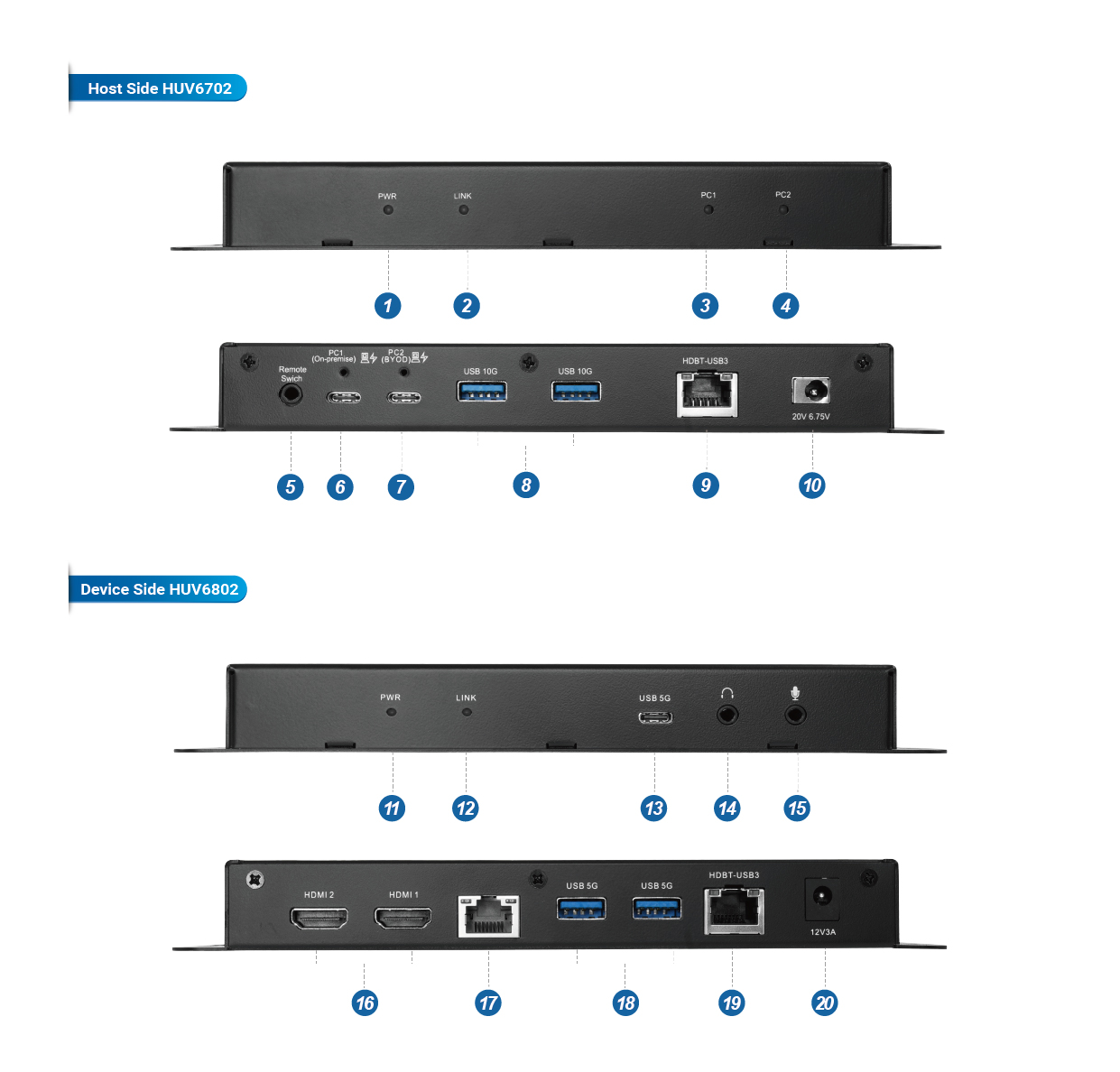

I/O 連接埠
LED-Power
LED-Link
LED-PC1
LED-PC2
Remote/Mute control
6 USB-C
USB-C
USB-A x 2
HDBT-USB3
Power In DC Jack
LED-Power
LED-Link
USB-C
Audio Out
Audio In
HDMI2.0 x 2
LAN
USB-A
HDBT-USB3
Power In DC Jack
規格
Model：
HUV6602
Description：
USB3 Extender Dual-Host KVM Dual-Display Kit
Max. Display：
2x
Max. Resolution：
4K60
Legacy Video Port：
2x HDMI2.0
USB Upstream：
2x USB-C 5Gbps
USB Downstream：
1x USB-C 5Gbps
2x USB-A 5Gbps
LAN：
1Gbps
Audio in/out：
1x /1x
Power mode：
Self-power
PD：
Tx:135W / Rx: 36W
Self-Power in：
USB-C
Chassis：
Aluminum
Cable：
Remote Control Cable
